TECHNICAL DATA SHEET
PAIGE STAINLESS HEELGUARD ®
Produced for architects and designers
Made for the building and plumbing industry

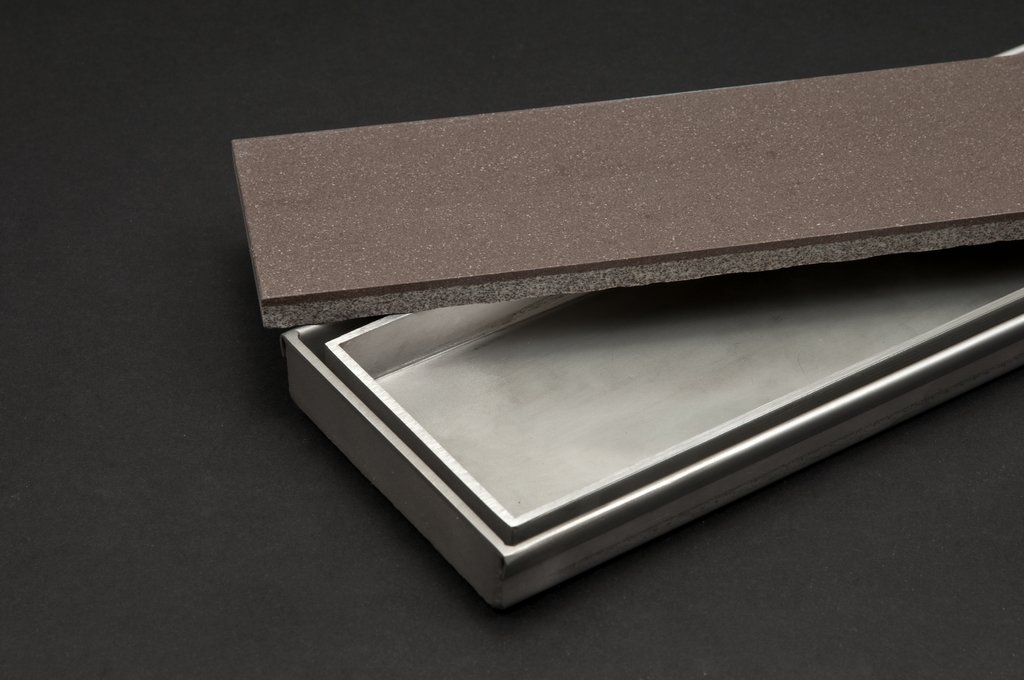

PSF-TT TILE INSERT & TROUGH
- Suitable for all tile, paver and concrete types
- Fully welded end caps and outlets
- 304 or 316 grade stainless steel
- Length as per requirement
- 1.2 mm thick pressed trays standard / 3mm thick insert
Depth may vary
Outlet Sizes
38.1 mm
50.8 mm
63.5 mm
76.2 mm
88.9 mm
101.6 mm
Width
50 mm overall
75mm overall
100mm overall
125mm overall
150mm overall
Load Class Options
- A
Optional Extras
- Leveling tags
- Lifting handles
- Heavier load class available on application
CERTIFICATIONS
Slip resistance in line with AS4586
Surface openings in pedestrian areas (AS3996)
Wheelchair and walking cane safety (AS1428.2- Clause 9)
Bicycle tyre penetration resistance (AS3996- Clause 3.3.6)
APPLICATIONS
Aged & Health Care Drainage | Courtyard & Al Fresco
Drainage |Pool and Spa Area Drainage |
Bathroom Drainage | Balcony Drainage
Lifetime warranty on materials
10 year warranty on workmanship
PAIGE STAINLESS FABRICATIONS
27 Cessna Drive, Caboolture QLD 4510
www.paigestainless.com.au | sales@paigestainless.com.au | 07 5499 1511
About Us
No one else has manufactured Heelguard to the Architectural Industry for over 20 years to the Australian Design Standard!
100% Australian Owned.
Material selection covering grade 304 / 316 / 515.
Manufacturing to the architectural industry for 20 years.
Certification available upon request.
‘Designing for aesthetics and functionality’.
FULL CUSTOM SYSTEMS A SPECIALTY.
Standard Specs
Wheelchair compliant AS1428.2 (part 2 clause 9C)
Cycle safe AS 3996 (clause 3.3.6)
Grates Aligned to Aust / NZ standards for LOAD RATING.
Grates aligned to Aust / NZ standards for SLIP RESISTANCE VALUES.
