TECHNICAL DATA SHEET
PAIGE STAINLESS HEELGUARD ®
Produced for architects and designers
Made for the building and plumbing industry

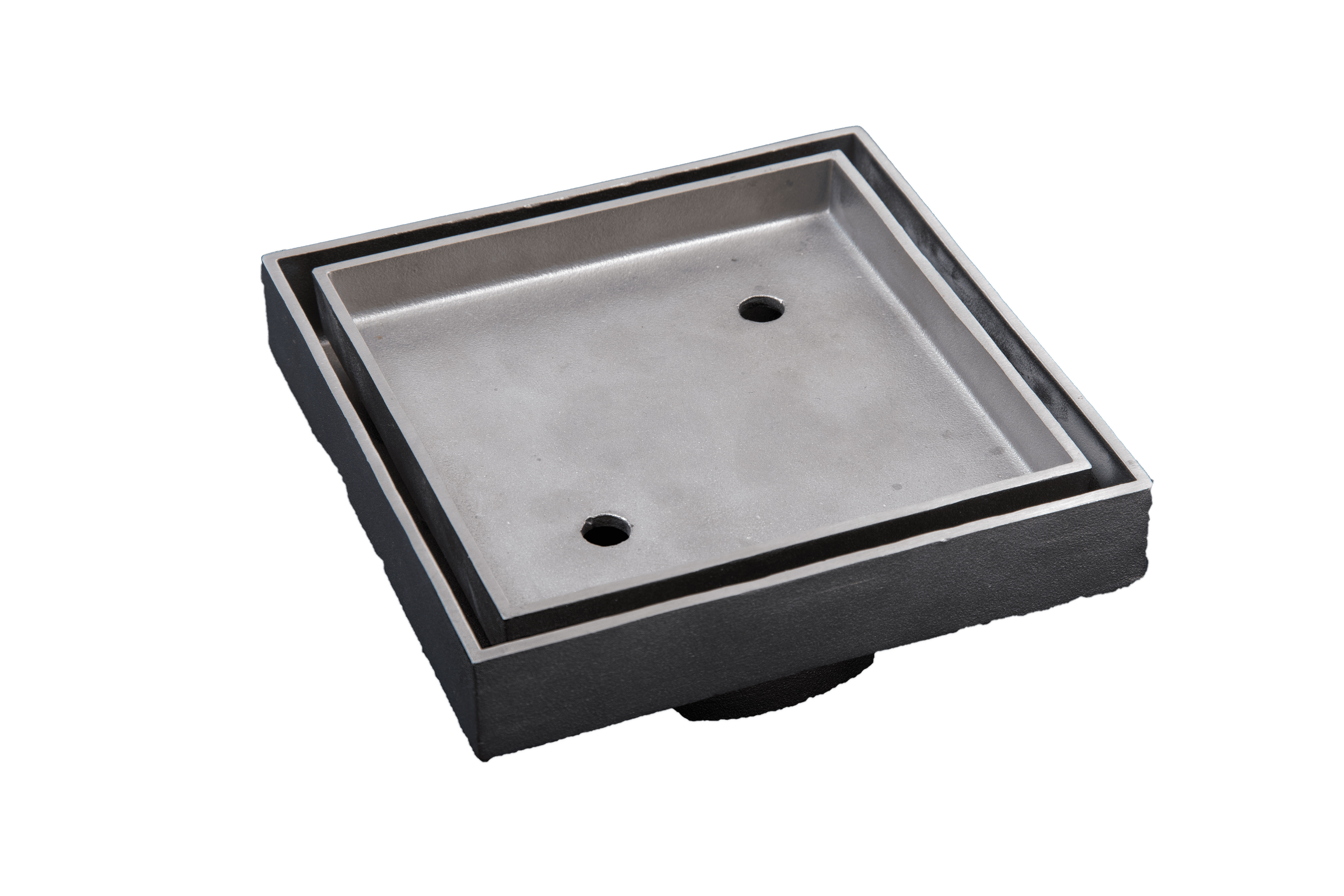

PSF-SQ TILE INSERT & TROUGH SQUARE
- Suitable for all tile, paver and concrete types
- Fully welded end caps and outlets
- 304 or 316 grade stainless steel
- 1.2 mm thick pressed trays standard / 3mm thick insert
Outlet Sizes
38.1 mm
50.8 mm
63.5 mm
76.2 mm
88.9 mm
101.6 mm
Width
100mm square
112mm square
130mm square
Other sizes available on request
Load Class Options
- A
Optional Extras
- Leveling tags
- Brass
- Heavier load class available on application
CERTIFICATIONS
Slip resistance in line with AS4586
Surface openings in pedestrian areas (AS3996)
Wheelchair and walking cane safety (AS1428.2- Clause 9)
Bicycle tyre penetration resistance (AS3996- Clause 3.3.6)
APPLICATIONS
Aged & Health Care Drainage | Courtyard & Al Fresco
Drainage |Pool and Spa Area Drainage |
Bathroom Drainage | Balcony Drainage
Lifetime warranty on materials
10 year warranty on workmanship
PAIGE STAINLESS FABRICATIONS
27 Cessna Drive, Caboolture QLD 4510
www.paigestainless.com.au | sales@paigestainless.com.au | 07 5499 1511
