TECHNICAL DATA SHEET
PAIGE STAINLESS HEELGUARD ®
Produced for architects and designers
Made for the building and plumbing industry

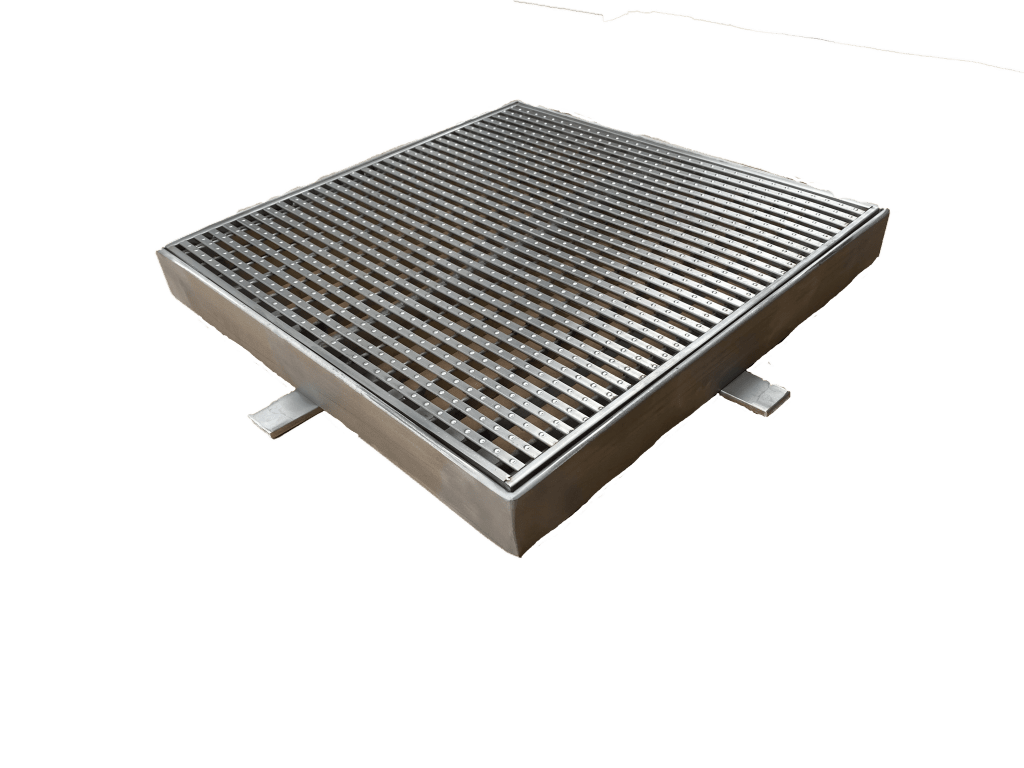

PSF-SGF SUMP GRATE & FRAME
- Welded Construction
- 304 or 316 grade stainless steel
- Full perimeter bar on grates
- Wire profile / gap to suit application
Standar Clear Opening
300mm x 300mm
450mm x 450mm
600mm x 600mm
600mm x 900mm
900mm x 900mm
1200mm x 1200mm
Load Class Options
- A
- B
- C
- D
Optional Extras
- Leveling tags
- Lifting handles
- Lockdown points (grate to frame)
CERTIFICATIONS
Slip resistance in line with AS4586
Surface openings in pedestrian areas (AS3996)
Wheelchair and walking cane safety (AS1428.2- Clause 9)
Bicycle tyre penetration resistance (AS3996- Clause 3.3.6)
APPLICATIONS
Aged & Health Care Drainage | Commercial Drainage |
Courtyard & Al Fresco Drainage |
Pool and Spa Area Drainage |
Pedestrian Area Drainage | Multi-Residential Drainage |
Landscaped and Streetscape Areas | Car Park &
Driveway Drainage
Lifetime warranty on materials
10 year warranty on workmanship
PAIGE STAINLESS FABRICATIONS
27 Cessna Drive, Caboolture QLD 4510
www.paigestainless.com.au | sales@paigestainless.com.au | 07 5499 1511
About Us
No one else has manufactured Heelguard to the Architectural Industry for over 20 years to the Australian Design Standard!
100% Australian Owned.
Material selection covering grade 304 / 316 / 515.
Manufacturing to the architectural industry for 20 years.
Certification available upon request.
‘Designing for aesthetics and functionality’.
FULL CUSTOM SYSTEMS A SPECIALTY.
Standard Specs
Wheelchair compliant AS1428.2 (part 2 clause 9C)
Cycle safe AS 3996 (clause 3.3.6)
Grates Aligned to Aust / NZ standards for LOAD RATING.
Grates aligned to Aust / NZ standards for SLIP RESISTANCE VALUES.
