TECHNICAL DATA SHEET

PAIGE STAINLESS HEELGUARD ®

Produced for architects and designers
Made for the building and plumbing industry

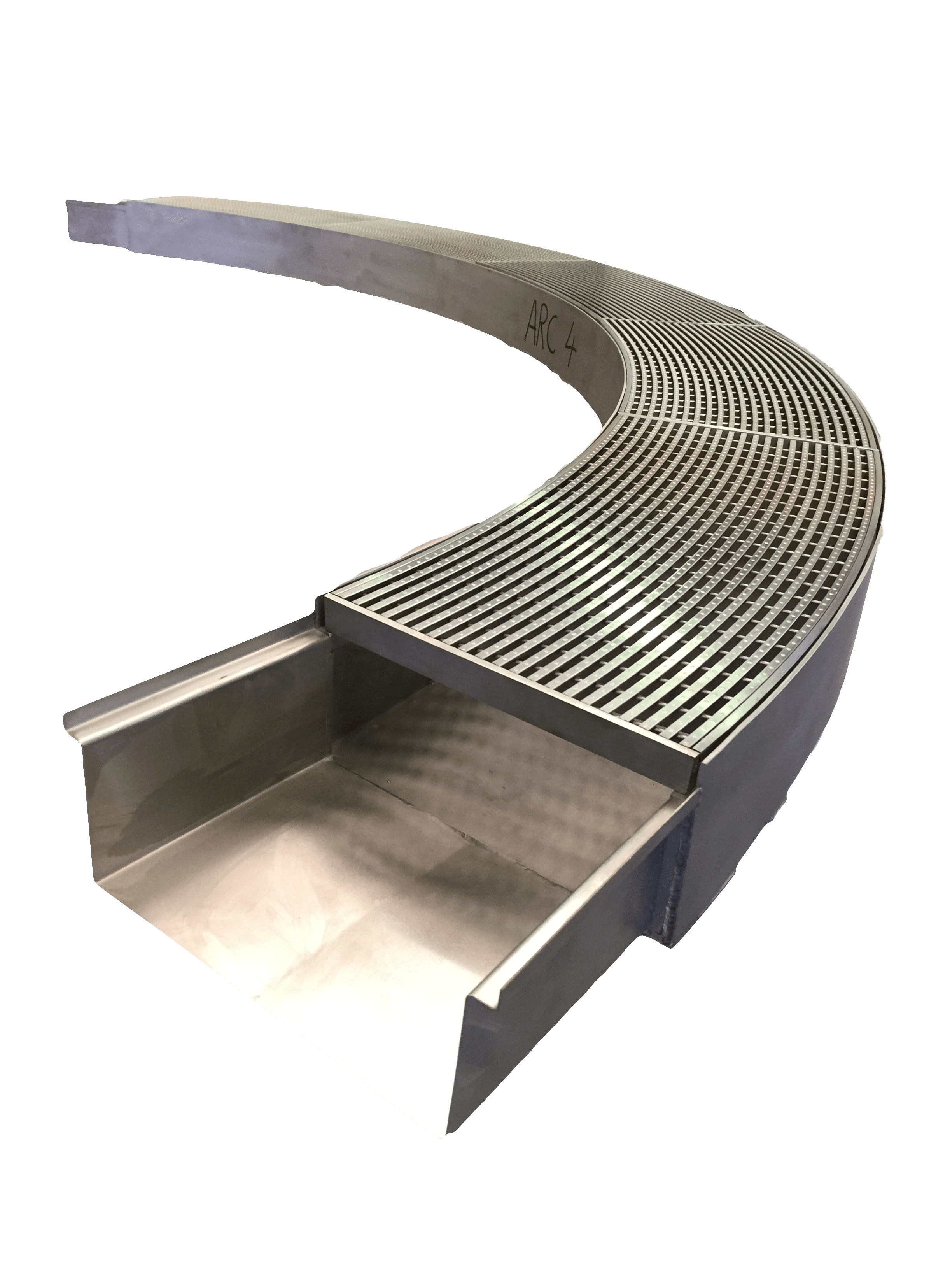

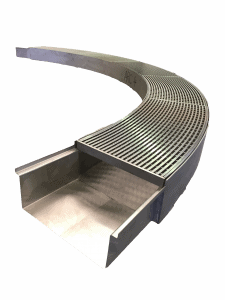

PSF-GTC GRATE & TROUGH -CURVED

  • 3 mm thick tray
  • Fully welded end caps and outlets
  • Curved to all custom radius and shapes
  • 304 or 316 grade stainless steel
  • Full perimeter bar on grates
  • Wire profile / gap to suit the application
  • Length as per requirement
  • Grate and troughs fabricated in equal lengths
Outlet Sizes

38.1 mm
50.8 mm
63.5 mm
76.2 mm
88.9 mm
101.6 mm

Load Class Options
  • A
  • B
  • C
  • D
Width

100 mm clear opening
125 mm clear opening
150 mm clear opening
200 mm clear opening
250 mm clear opening
300 mm clear opening

Custom width of any size available on request

Optional Extras
  • Built-in fall
  • Lifting handles
  • Concrete ties / levelling
  • Lockdown grates / anti-vandal

CERTIFICATIONS

Slip resistance in line with AS4586
Surface openings in pedestrian areas (AS3996)
Wheelchair and walking cane safety (AS1428.2- Clause 9)
Bicycle tyre penetration resistance (AS3996- Clause 3.3.6)

APPLICATIONS

Water Features | Health Care Drainage | Commercial
Drainage | Courtyard & Al Fresco Drainage |
Pool and Spa Area Drainage | Pedestrian Area Drainage | Multi-Residential Drainage |
Landscaped and Streetscape Areas | Car Park & Driveway Drainage

Lifetime warranty on materials
