TECHNICAL DATA SHEET
PAIGE STAINLESS HEELGUARD ®
Produced for architects and designers
Made for the building and plumbing industry

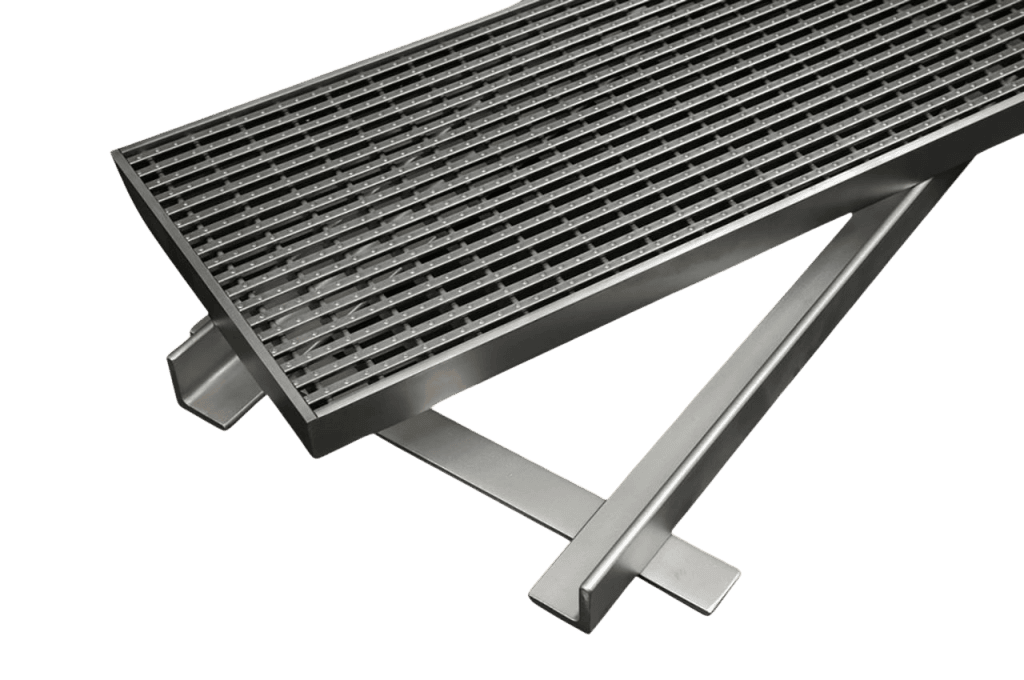

PSF-GF LINEAR GRATE & FRAME
- Welded construciton
- 304 or 316 grade stainless steel
- Full perimeter bar on grates
- Wire profile / gap to suit application
- Length as required
Standard Frame Sizes
20 x 20 x 3
25 x 25 x 5
30 x 30 x 5
40 x 40 x 5
50 x 50 x 5
Load Class Options
- A
- B
- C
- D
Standard Width
100 mm clear opening
125 mm clear opening
150 mm clear opening
200 mm clear opening
250 mm clear opening
300 mm clear opening
Custom width of any size available on request
Optional Extras
- Leveling tags
- Lifting handles
- Custom designs
- Material options
- Lockdown points (grate to frame)
CERTIFICATIONS
Slip resistance in line with AS4586
Surface openings in pedestrian areas (AS3996)
Wheelchair and walking cane safety (AS1428.2- Clause 9)
Bicycle tyre penetration resistance (AS3996- Clause 3.3.6)
APPLICATIONS
Aged & Health Care Drainage | Commercial Drainage |
Courtyard & Al Fresco Drainage |
Pool and Spa Area Drainage |
Pedestrian Area Drainage | Multi-Residential Drainage |
Landscaped and Streetscape Areas | Car Park &
Driveway Drainage
Lifetime warranty on materials
10 year warranty on workmanship
PAIGE STAINLESS FABRICATIONS
27 Cessna Drive, Caboolture QLD 4510
www.paigestainless.com.au | sales@paigestainless.com.au | 07 5499 1511
About Us
No one else has manufactured Heelguard to the Architectural Industry for over 20 years to the Australian Design Standard!
100% Australian Owned.
Material selection covering grade 304 / 316 / 515.
Manufacturing to the architectural industry for 20 years.
Certification available upon request.
‘Designing for aesthetics and functionality’.
FULL CUSTOM SYSTEMS A SPECIALTY.
Standard Specs
Wheelchair compliant AS1428.2 (part 2 clause 9C)
Cycle safe AS 3996 (clause 3.3.6)
Grates Aligned to Aust / NZ standards for LOAD RATING.
Grates aligned to Aust / NZ standards for SLIP RESISTANCE VALUES.
