TECHNICAL DATA SHEET

PAIGE STAINLESS HEELGUARD ®

Produced for architects and designers
Made for the building and plumbing industry

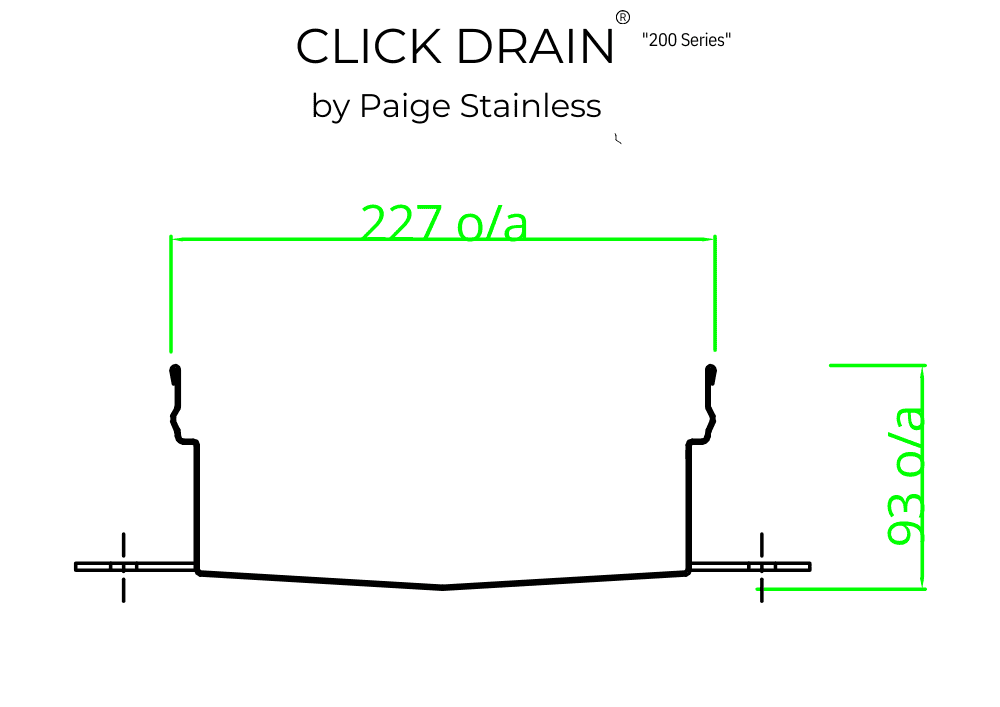

PSF-CD200 CLICK DRAIN 200 SERIES

  • Complete modular system with ‘ click on’ outlets and end caps
  • 1.2 mm thick pressed stainless steel trays
  • 304 or 316 grade stainless steel
  • Full perimeter bar on grates
  • Supplied with  HM3 anti-slip grating/5mm aperture
  • Lockdown and concrete ties standard
Product Information
  • Troughs supplied in 1 metre and 2 metre sections
  • Heelguear grates supplied in 1 metre sections
  • 90 degree and 45 degree mitres as standard
  • Custom angles available
Load Class Options

CERTIFICATIONS

Slip resistance in line with AS4586
Surface openings in pedestrian areas (AS3996)
Wheelchair and walking cane safety (AS1428.2- Clause 9)
Bicycle tyre penetration resistance (AS3996- Clause 3.3.6)

Applications

Aged & Health Care Drainage | Commercial Drainage | Courtyard & AI Fresco Drainage | Pool and Spa Area Drainage |  Pedestrian Area Drainage | Multi-Residential Drainage | Landscaped and Streetscape Areas | Car Park & Driveway Drainage

Lifetime warranty on materials

WATER-Logo

10 year warranty on workmanship
