TECHNICAL DATA SHEET

PAIGE STAINLESS HEELGUARD ®

Produced for architects and designers
Made for the building and plumbing industry

PAIGE STAINLESS GRILLAGE PSF HM3/5 GRATING

Bespoke item custom-fabricated to requirements

Suitable for:

  • Stair Treads
  • Ramps
  • Entry Mats
  • Suspended Walkways
  • Custom Flooring
Platform and deck grating

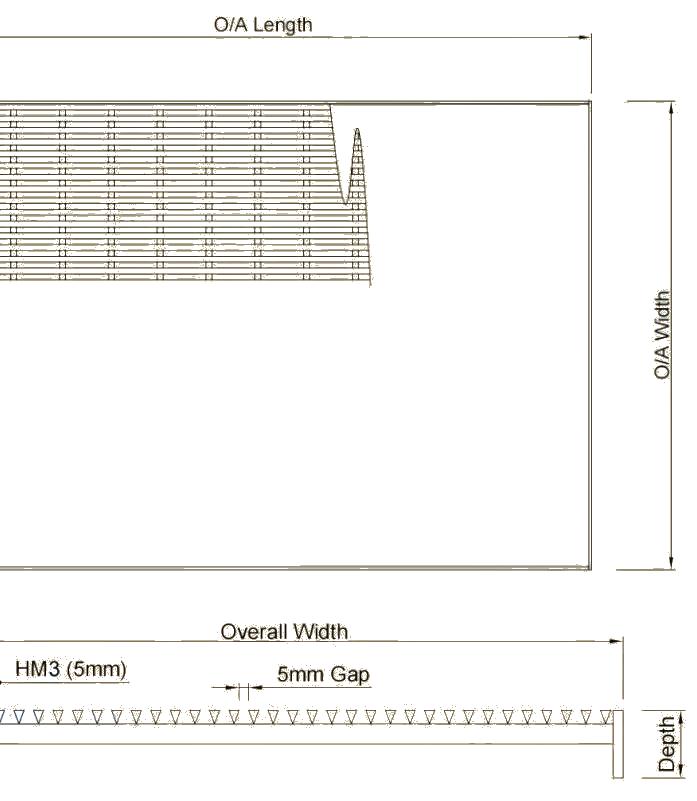

custo-graph
Product Information
  • Panel sizes range from 500mm square – 2000mm square
  • 304 or 316 grade stainless steel
  • Full perimeter bar on grates
  • Bolt down option available
  • Lockable
  • HM3
Load Class Options
  • A
  • B

CERTIFICATIONS

Slip resistance in line with AS4586
Surface openings in pedestrian areas (AS3996)
Wheelchair and walking cane safety (AS1428.2- Clause 9)
Bicycle tyre penetration resistance (AS3996- Clause 3.3.6)

APPLICATIONS

Aged & Health Care Drainage | Commercial Drainage |
Courtyard & Al Fresco Drainage |
Pool and Spa Area Drainage |
Pedestrian Area Drainage | Multi-Residential Drainage |
Landscaped and Streetscape Areas | Car Park &
Driveway Drainage

Lifetime warranty on materials

WATER-Logo

10 year warranty on workmanship

PAIGE STAINLESS FABRICATIONS

27 Cessna Drive, Caboolture QLD 4510
www.paigestainless.com.au | sales@paigestainless.com.au | 07 5499 1511
